דגם 1503CLH

לאלומיניום בעובי 0.6–3 מ״מ – גרסה סגורה

Copper and silver-colored metal adapter with threaded center, labeled with measurements: 50mm diameter, 15mm height, M14 thread. Shown from top, side, and angled views against a white background.
דיזה לייזר 32 מ״מ Φ2.0 מ״מ סוג B (כפולה/מצופה כרום, חיתוך מהיר) 29.50 ₪
חזרה למוצרים
ממלא מקום
דגם SF-VL

דגם 1503CLH

מיועד לאלומיניום ומתכות לא-ברזליות; מבנה סגור; שליטה אוטומטית מלאה; גוף קשיח לעבודה ממושכת.
דגם

1503CLH
עובי מקס' (mm)

3
עובי מינ' (mm)

0.6
מהירות הזנה מקס'

10 m/min
שטח עבודה (mm)

3000×1500
משקל סליל מקס' (T)

15
קוטר סליל פנימי/חיצוני (mm)

Φ508/Φ1400
הספק לייזר (kW)

6
דיוק מיקום (mm)

±0.05
דיוק חזרה (mm)

±0.02
מק"ט: 883d3d534210 קטגוריות: , ,

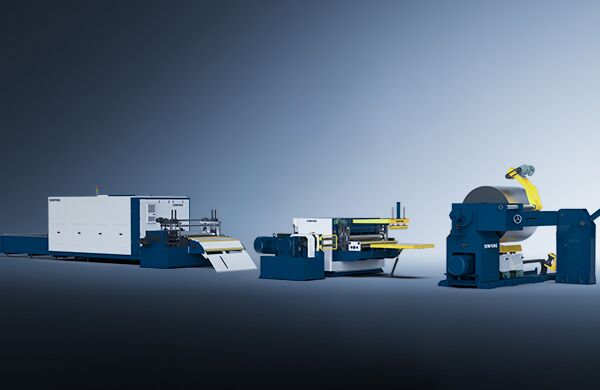

The דגם 1503CLH is a modern industrial metal processing machine featuring a large roll of sheet metal, conveyors, and automated cutting units, set against a gradient blue background.
The דגם 1503CLH is a modern industrial machine featuring interconnected blue and white components, showcased on a gray surface with a blue gradient background to highlight automated manufacturing capabilities.

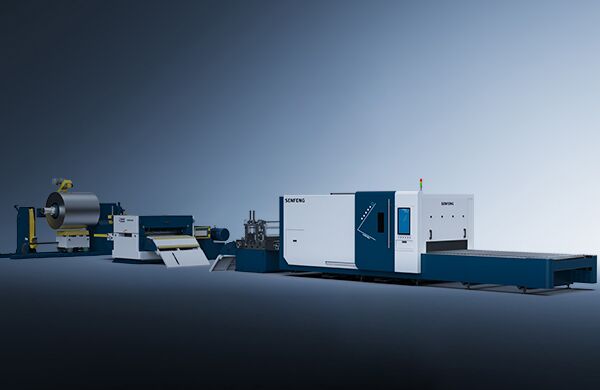

The דגם 1503CLH is a large industrial sheet metal processing machine featuring a coil feeder, straightener, and blue-and-white CNC cutting unit, shown against a gradient blue background.
Three דגם 1503CLH industrial machines with white and blue casings are displayed side by side on a smooth, gradient background, highlighting equipment used in manufacturing or processing.
The דגם 1503CLH is a modern industrial metal processing machine featuring a large roll of sheet metal, conveyors, and automated cutting units, set against a gradient blue background.
צפייה בוידאו
לחצו להגדלה
    The דגם 1503CLH is a modern industrial metal processing machine featuring a large roll of sheet metal, conveyors, and automated cutting units, set against a gradient blue background.
    The דגם 1503CLH is a modern industrial machine featuring interconnected blue and white components, showcased on a gray surface with a blue gradient background to highlight automated manufacturing capabilities.
    The דגם 1503CLH is a large industrial sheet metal processing machine featuring a coil feeder, straightener, and blue-and-white CNC cutting unit, shown against a gradient blue background.
    Three דגם 1503CLH industrial machines with white and blue casings are displayed side by side on a smooth, gradient background, highlighting equipment used in manufacturing or processing.
    The דגם 1503CLH is a modern industrial metal processing machine featuring a large roll of sheet metal, conveyors, and automated cutting units, set against a gradient blue background.
    A blue logo with Hebrew text and ISO 9001:2015 in the center, encircled by more Hebrew text. At the bottom, there is additional Hebrew writing. The logo is from the Standards Institution of Israel.
    A dark circular badge with white text in Hebrew and English that reads dun & bradstreet and two Hebrew words above and below, all enclosed in a white circular border.
    לפרטים ומידע נוסף
    חייגו: 074-737-9045
    או מלאו את הטופס
    Logo for Everest Machines Import & Marketing with a stylized mountain graphic on the left and bold text on a light background.
